OSENC Magnetic Separation
Integrated Conveyor or Separate Separator
Choose a magnetic head pulley when an existing conveyor discharge is the best separation point and the head pulley can be replaced. Choose a housed magnetic drum when the process needs a separate enclosed unit with its own controlled inlet, feed distribution, drive, splitter, and outlets. The magnetic principle may be similar, but installation scope and feed control are different.
Core Difference
| Factor | Magnetic head pulley | Housed magnetic drum |
|---|---|---|
| Integration | Part of the product conveyor | Separate separator in a gravity or controlled feed path |
| Feed | Material carried on a belt | Feed chute or feeder distributes material to drum |
| Drive | Conveyor drive relationship | Dedicated or integrated drum drive |
| Enclosure | Usually open conveyor discharge with chutes/guards | Housing with inlet, outlets, doors, seals and liners |
| Interface risk | Shaft, bearings, tension, wrap and conveyor downtime | Headroom, support, feed, dust, outlets and maintenance access |
Choose a Head Pulley When
- The conveyor already presents a suitable, controlled layer.
- Replacing the pulley is mechanically and commercially acceptable.
- The discharge area can create two stable trajectories.
- Minimal additional process equipment is preferred.

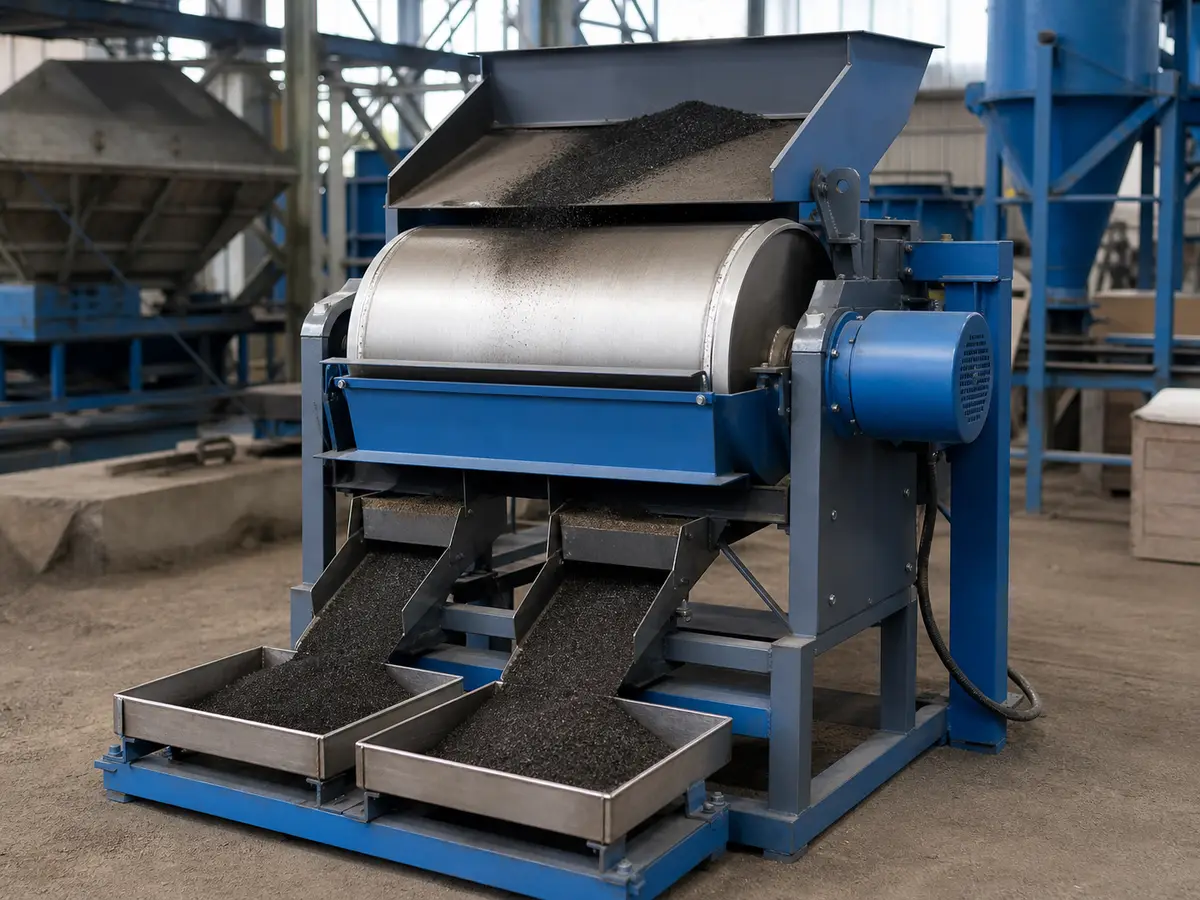

Choose a Housed Drum When
- A separate gravity-fed stage fits between process equipment.
- An enclosure is needed for dust, access, or controlled outlets.
- Feed can be spread across the full drum width.
- Independent drum speed, splitter, liner, and inlet/outlet design are valuable.
Feed Control Often Decides Performance
A head pulley inherits the conveyor’s belt loading and speed. A housed drum can use a feeder or chute but may still suffer from surges and uneven width distribution. Compare actual layer thickness, liberation, particle size, moisture, bounce, and required throughput under stated conditions.
Mechanical and Maintenance Scope
Head-pulley projects require accurate replacement dimensions, shaft and bearing design, belt tracking, tension, lagging, drive, cleaners, guards, and shutdown planning. Housed-drum projects require support, inlet/outlet interfaces, access doors, drive maintenance, shell and liner inspection, seals, and safe removal space.
Splitter and Product Loss
Both rely on different discharge trajectories. A splitter closer to the nonmagnetic stream may capture more marginal magnetic material while increasing clean-product loss. Define acceptable contamination and recovery, sample both fractions, and document the selected setting.
Decision Inputs
Send process flow, material, particle size, moisture, bulk density, throughput, target magnetic material, liberation, conveyor and pulley data, available headroom, chute geometry, environmental conditions, required enclosure, maintenance access, and acceptance method.
Decide Whether the Conveyor or Separator Owns the Drum
| Decision rule | Use a head pulley when the conveyor belt and drive arrangement can perform the separation; use a housed drum when feed, enclosure, speed and splitter need independent control. |
|---|---|
| Inputs to confirm | Feed source, particle and target size, belt or chute speed, throughput and layer depth; field coverage at the target, magnetic circuit and arc, shell or belt thickness and resulting working gap; housing need, dust, splitter, drive and maintenance access. |
| Risk or limitation | A head pulley is constrained by conveyor geometry; a housed drum adds transfer and drive components but can provide controlled presentation and outlets. |
| Buyer action | Compare interface drawings, trajectories and service access and sample both fractions under the proposed feed condition. |
What We Need to Configure This Project
Input set for Magnetic Head Pulley vs Housed Magnetic Drum Separator
- How we use your data: We compare your material, contamination risk, production target and line interface before we configure a proposal or rule out an unsuitable option.
- Material: name and composition; dry or wet; powder, granule, lump, fibre or slurry; minimum, maximum and typical particle distribution; moisture, stickiness, tendency to cake or bridge, abrasiveness, corrosiveness, bulk density, normal temperature and maximum temperature.
- Production and target: normal and peak throughput, continuous or batch feed, feed uniformity, contaminant or recovery target, magnetic response if known, typical and maximum target size, initial concentration, acceptable residual and whether product loss is permitted.
- Installation: belt width and speed, normal and maximum burden depth, magnet position and rated working distance, available suspension and maintenance space, support and lifting arrangement; cleaning method, permitted shutdown, contact-material, wear and corrosion requirements; indoor, outdoor, washdown, high-humidity, dusty or hazardous-area conditions.
- Supporting project files: drive voltage, frequency and phase where a self-cleaning unit is considered; control interface and any site air requirement; destination country; current drawings, site photographs, running video and a representative material/contaminant sample when testing is needed.
- What you receive next: We use the confirmed inputs to prepare a project-specific drawing and inspection plan. We do not treat performance as confirmed until the agreed design and any required representative test or site acceptance establish the result.
Project Support
Need help selecting the right magnetic solution?
Send us your material, flow condition, target metal, capacity, installation space and any drawings or site photos. We will review the application and recommend the next practical step.
Frequently Asked Questions
Why is “Feed Control Often Decides Performance” important for this decision?
A head pulley inherits the conveyor’s belt loading and speed. A housed drum can use a feeder or chute but may still suffer from surges and uneven width distribution.
Why is “Mechanical and Maintenance Scope” important for this decision?
Head-pulley projects require accurate replacement dimensions, shaft and bearing design, belt tracking, tension, lagging, drive, cleaners, guards, and shutdown planning.
Why is “Splitter and Product Loss” important for this decision?
Both rely on different discharge trajectories. A splitter closer to the nonmagnetic stream may capture more marginal magnetic material while increasing clean-product loss.
